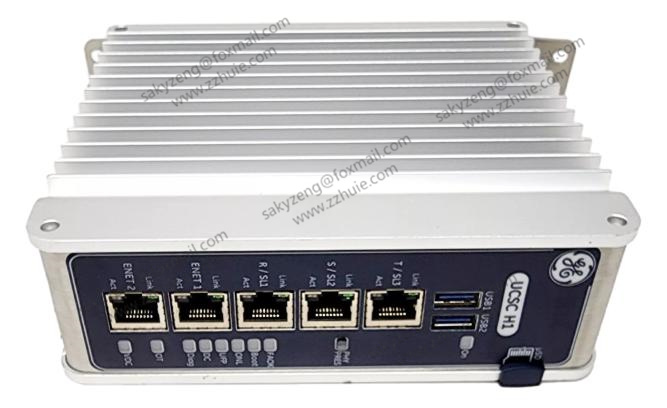

GE IS420UCSCH1B | Mark VIe Gateway Controller

Product Description

GE IS420UCSCH1B is a high-performance quad-core UCSC H1 controller module for Mark VIe / Mark VIeS turbine control system. Adopts 1.2GHz AMD quad-core processor, running QNX real-time operating system.

It supports simplex / dual redundant configuration, widely used in heavy-duty gas turbine, steam turbine safety control. Equipped with multiple independent Ethernet ports, built ECC memory and Predix cloud connection function,

provides high-speed, stable real-time control for power generation equipment.

Technical Specifications

• Part Number: IS420UCSCH1B
• Brand: GE (GE Vernova)
• Series: Mark VIe
• CPU: AMD G-Series Quad-core 1.2GHz
• Power Supply: 24VDC (18~32VDC)
• Memory: ECC DDR3 RAM + NVSRAM + Flash storage
• Communication: 6 Ethernet ports, 2 × USB2.0
• Operating Temperature: -30℃ ~ +65℃
• Storage Temperature: -40℃ ~ +85℃
• Origin: USA

Key Features

1. Quad-core high-speed processor, meet complex combustion & load control requirement
2. QNX real-time hypervisor, deterministic control performance
3. ECC error-correcting memory, protect critical control data
4. Multiple network ports separated for different subnets
5. Support simplex, dual redundant configuration for safety-critical system
6. Built-in EFA, enable Predix cloud remote diagnosis
7. Rugged industrial design, stable operation under harsh site environment
